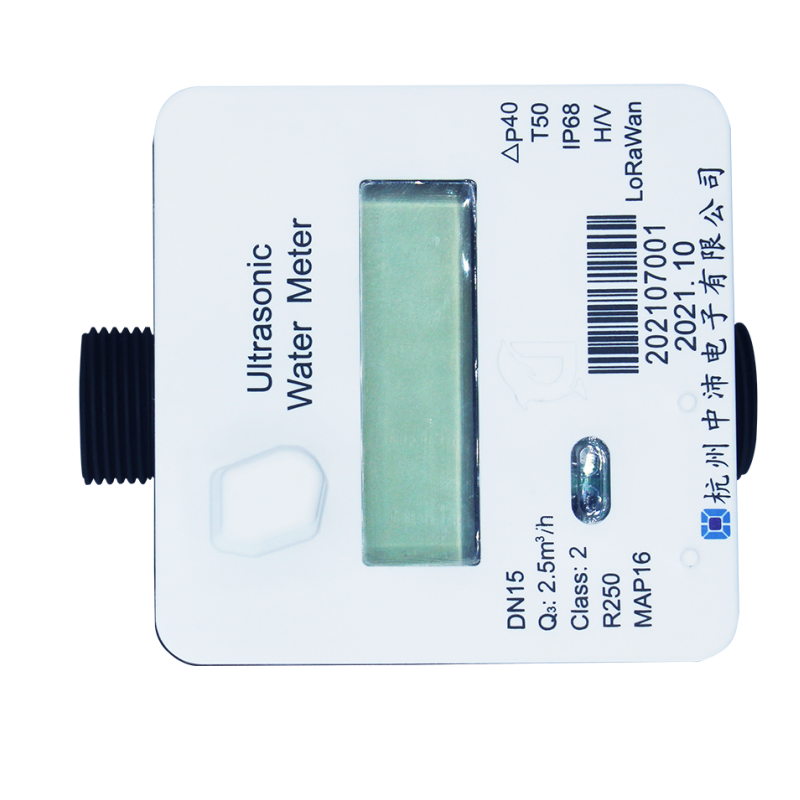

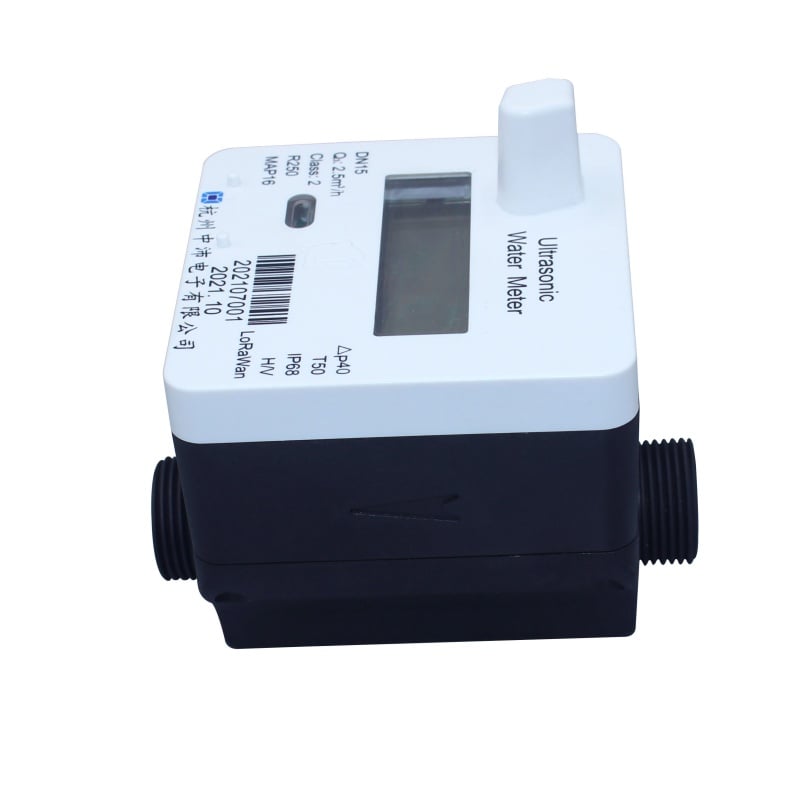

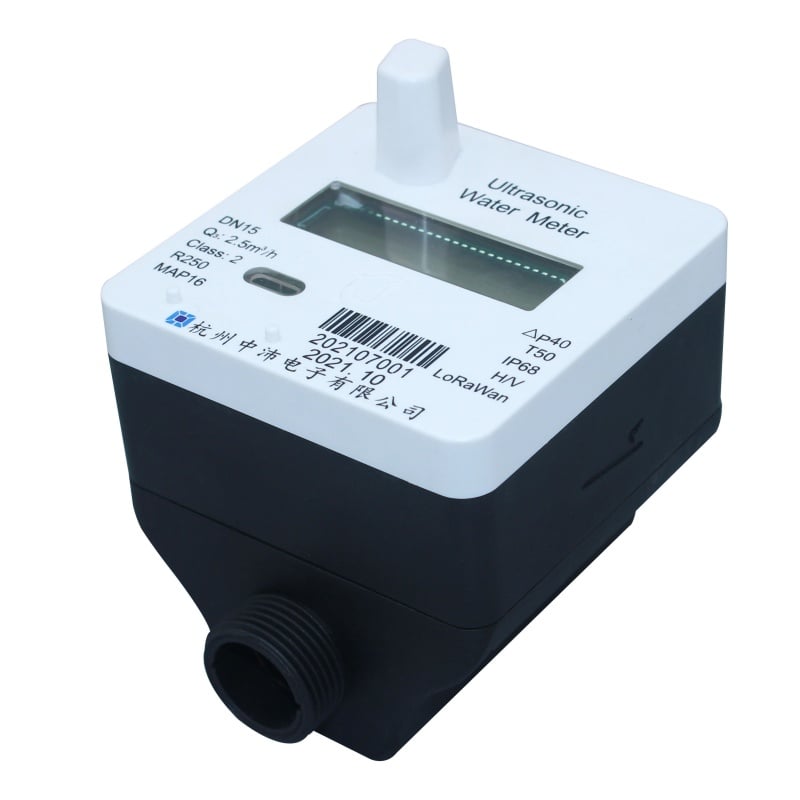

Product Features:
1.Product application in pure water, direct drinking water metering
2.Pipe material:PA66
3.Small size appearance
4.Ultrasonic metering, no mechanical wear and tear, with excellent reliability, stability
5.Accuracy level:Class 2
6.Range ratio:R100/R125/R160/R250
7.Temperature grade:T30/T50
8.Conform to national standard:GB/T 778;ISO 4064
9.With water drip, burst pipe alarm function
10.Communication interface diversity:MBUS/RS485/Pulse/LoRaWan/NB-loT/4G
Product Overview:
Product applications in pure water, direct drinking water metering
-Pipe material: Nylon Plastic
-Small size appearance
-Ultrasonic metering, no mechanical wear and tear, with excellent reliability, stability
-Accuracy level: Class 2
-Range ratio: R100/R160/R250
-Temperature grade: T30/T50
-Conform to national standards: ISO 4064
-With water drip, burst pipe alarm function
-Communication interface diversity:MBUS、RS485、Pulse、LoRaWan、NB-IoT、Zigbee
Technical Parameter
|
Performance |
Parameter |
||
|
Diameter |
DN15 |
DN20 |
DN25 |
|
Length (mm) |
110 |
130 |
150 |
|
Q3(m³/h) |
2.5 |
4 |
6.3 |
|
Start Flow ( L/h ) |
2 |
2 |
3 |
|
Range Ratio |
Q3/Q1=100/125/160/200/250 |
||
|
Accuracy Class |
Class 2 |
||
|
Pressure Stage |
MAP16 |
Pressure loss rating |
≤0.063MPa |
|
Temperature |
T30/T50; Default T30 |
||
|
Data Storage |
With daily storage,daily freeze,monthly storage, monthly freeze,annual storage |
||
|
Transmission |
Optical/M-BUS/RS485/NB-IOT/LORA/LORAWAN/4G/Pulse/wMBUS; (Optional) |
||
|
Power |
DC3.6V Lithium Battery |
||
|
Protection Class |
IP68 |
||
|
Environmental |
Temperature:-25°C ~ +55°C |
||
|
Installation |
Horizontal or Vertical |
||
|
Battery life |
Life Period ≥ 6 years |
||
|
Flow measure |
Reverse flow is measurable |
||
|
Stream Field Sensitivity |
U0D0 |
||
External Dimensions
|
Nominal Diameter |
DN15 |
DN20 |
DN25 |
|
Thread |
G3/4B |
G1B |
G11/4B |
|
L(mm) |
110 |
130 |
150 |
|
H(mm) |
85 |
85 |
85 |
|
W(mm) |
107.8 |
110.3 |
113.3 |
|
Customised threads available |
|||
