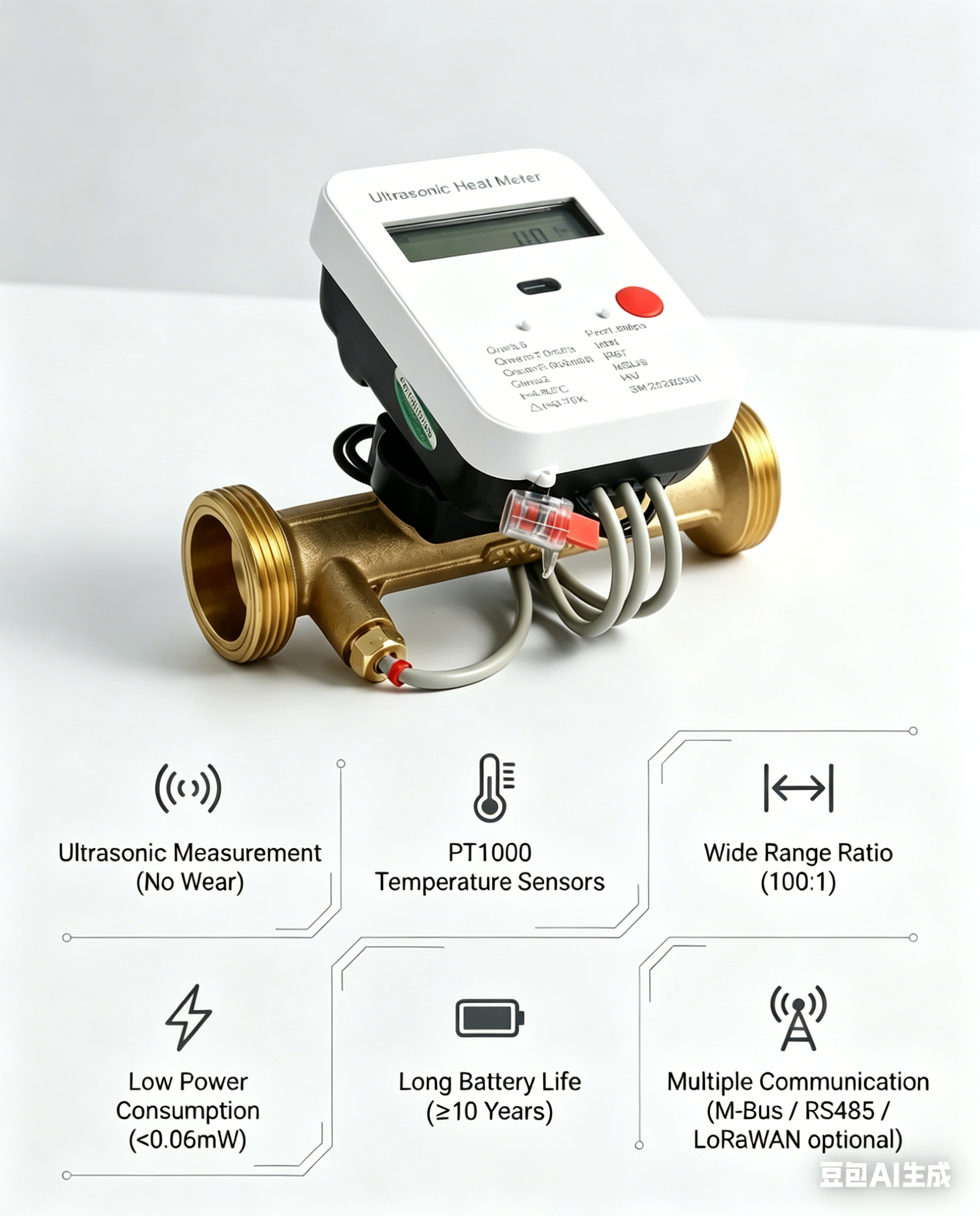

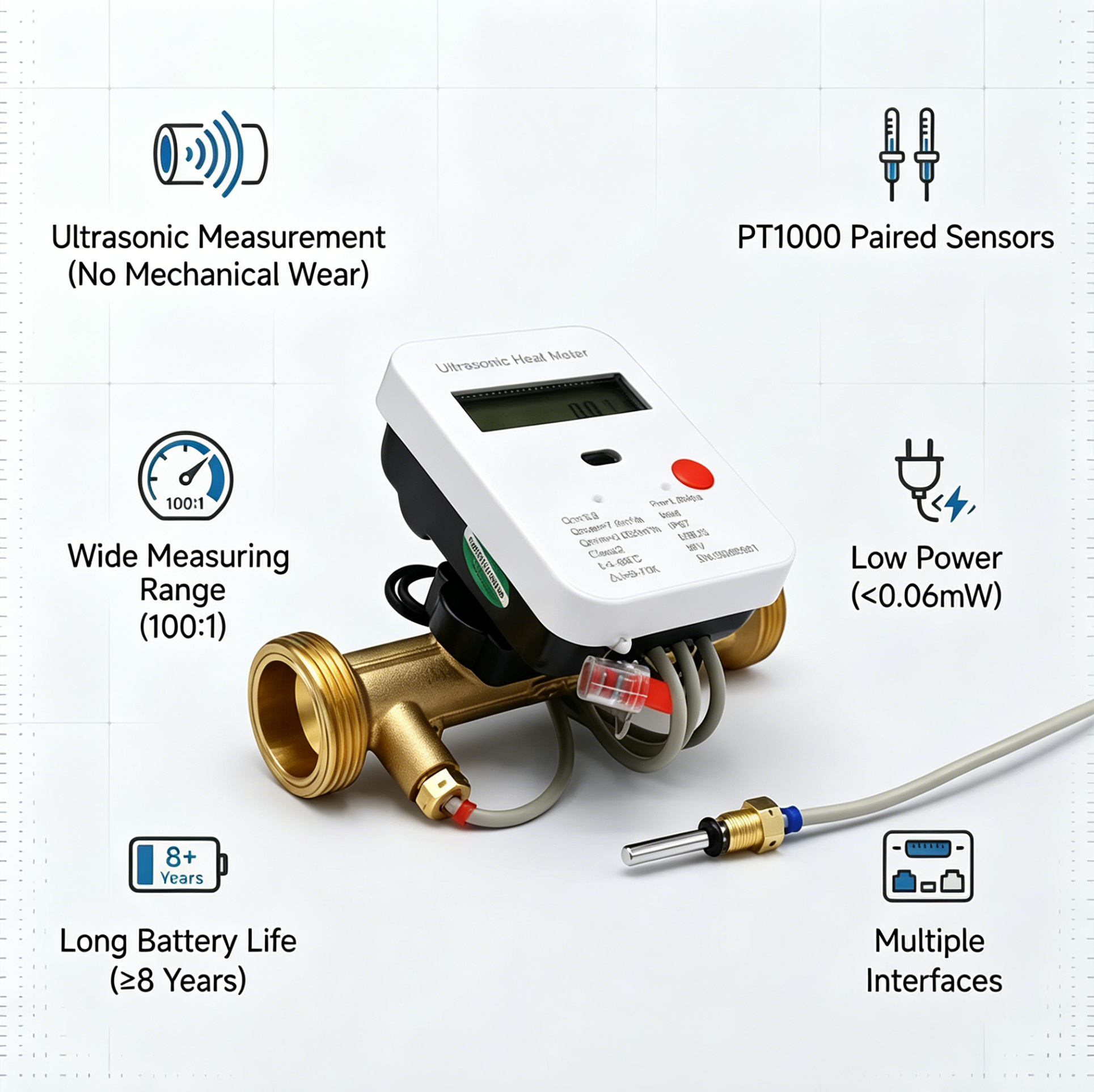

Product Features:

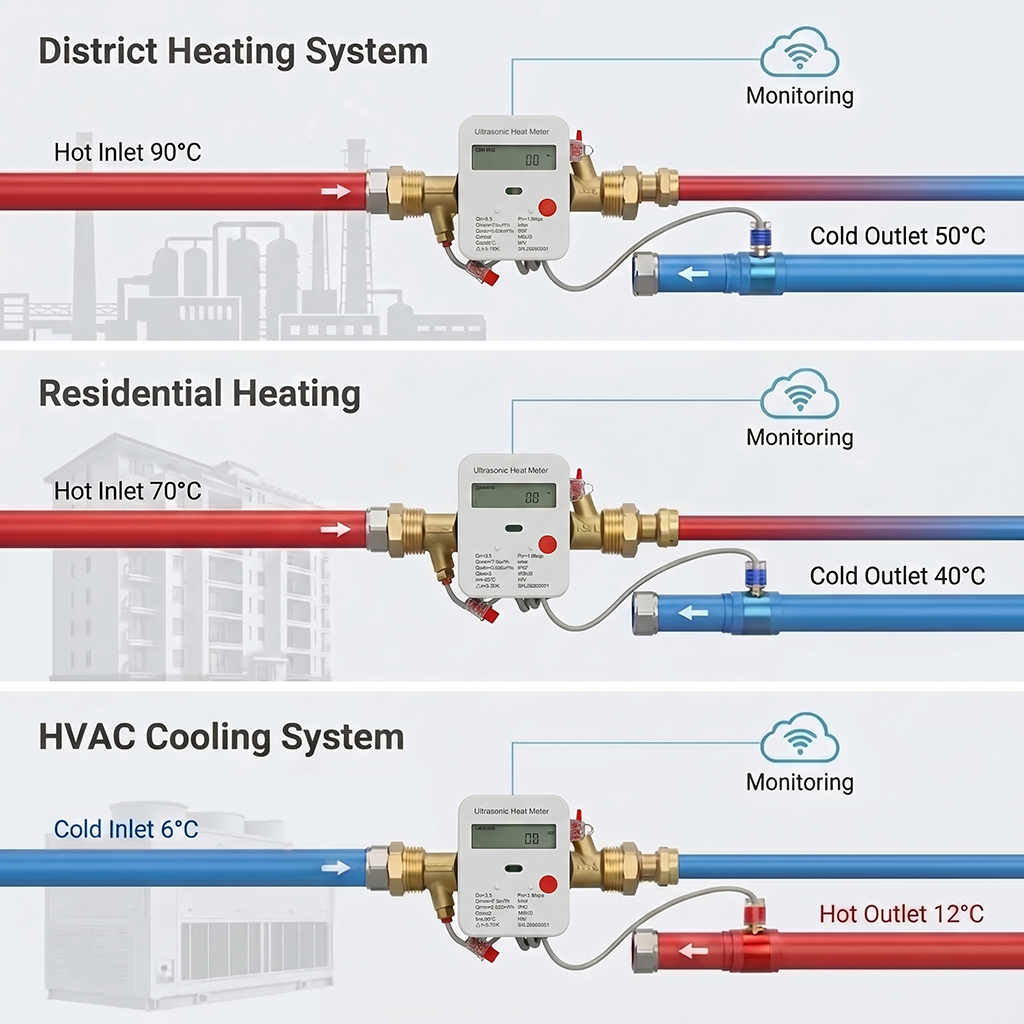

1.Product application in heating metering
2.Pipe material:copper

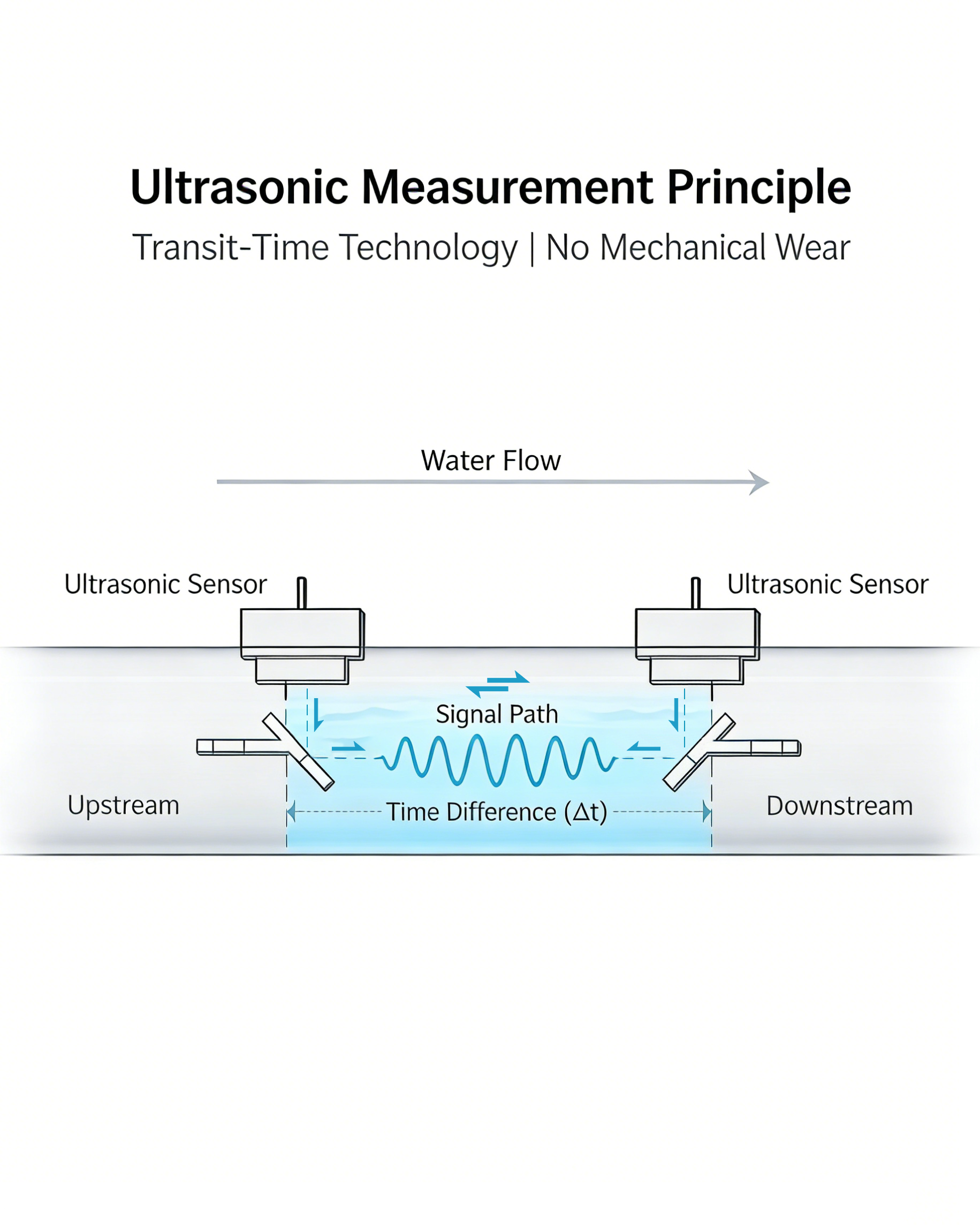

3.Ultrasonic metering, no mechanical wear and tear, with excellent reliability, stability
4.Accuracy level:Class 2
5.Range ratio:R50/R100
6.Temperature range:(4~95)°C
7.Temperature range:(2~90)K
8.Conform to national standard:GB/T 32224; EN1434
9.Communication interface diversity:
MBUS/RS485/Pulse/LoRaWan/NB-loT/Zigbee/4G/wMBUS
10.Replaceable battery design
1.Product application in heating metering
2.Pipe material:copper
3.Ultrasonic metering, no mechanical wear and tear, with excellent reliability, stability
4.Accuracy level:Class 2
5.Range ratio:R50/R100
6.Temperature range:(4~95)°C
7.Temperature range:(2~90)K
8.Conform to national standard:GB/T 32224; EN1434
9.Communication interface diversity:
MBUS/RS485/Pulse/LoRaWan/NB-loT/Zigbee/4G/wMBUS
10.Replaceable battery design

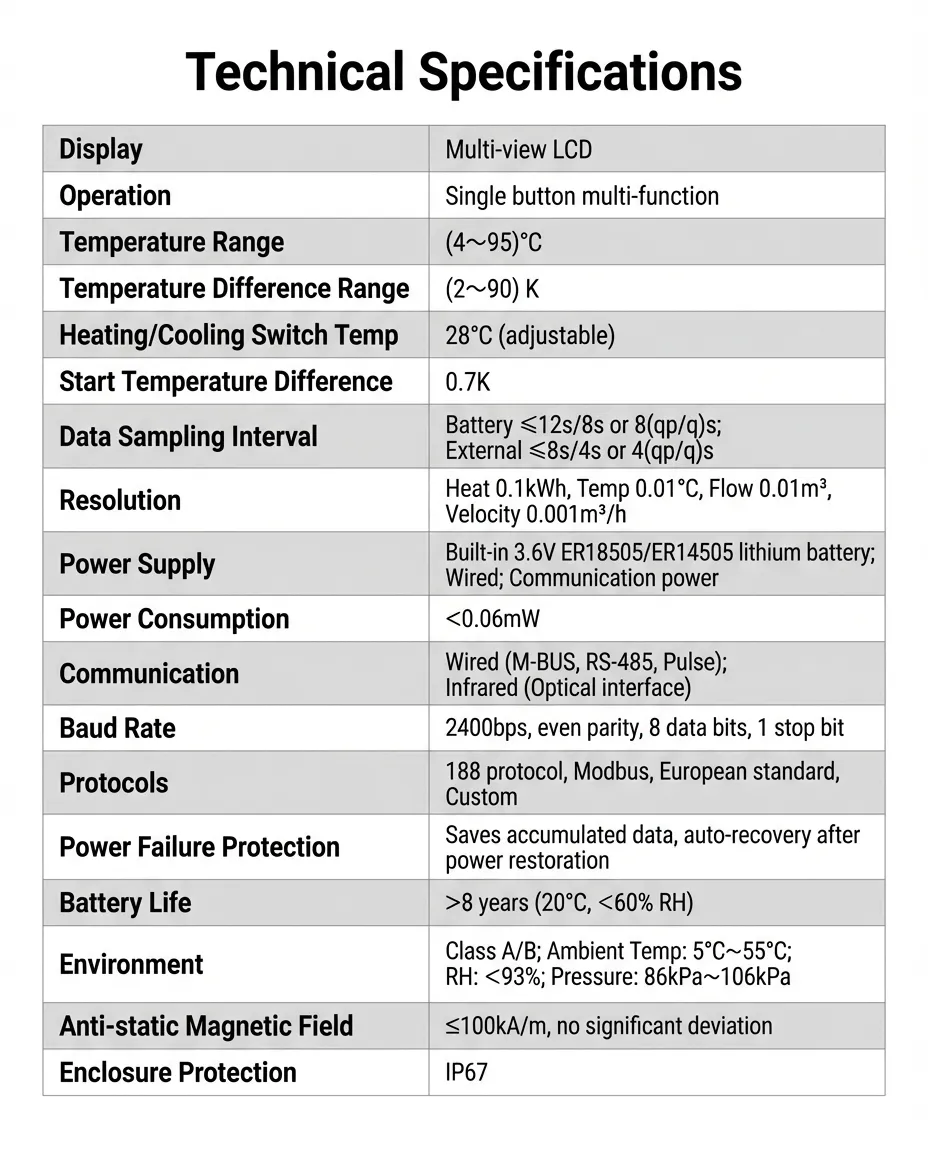

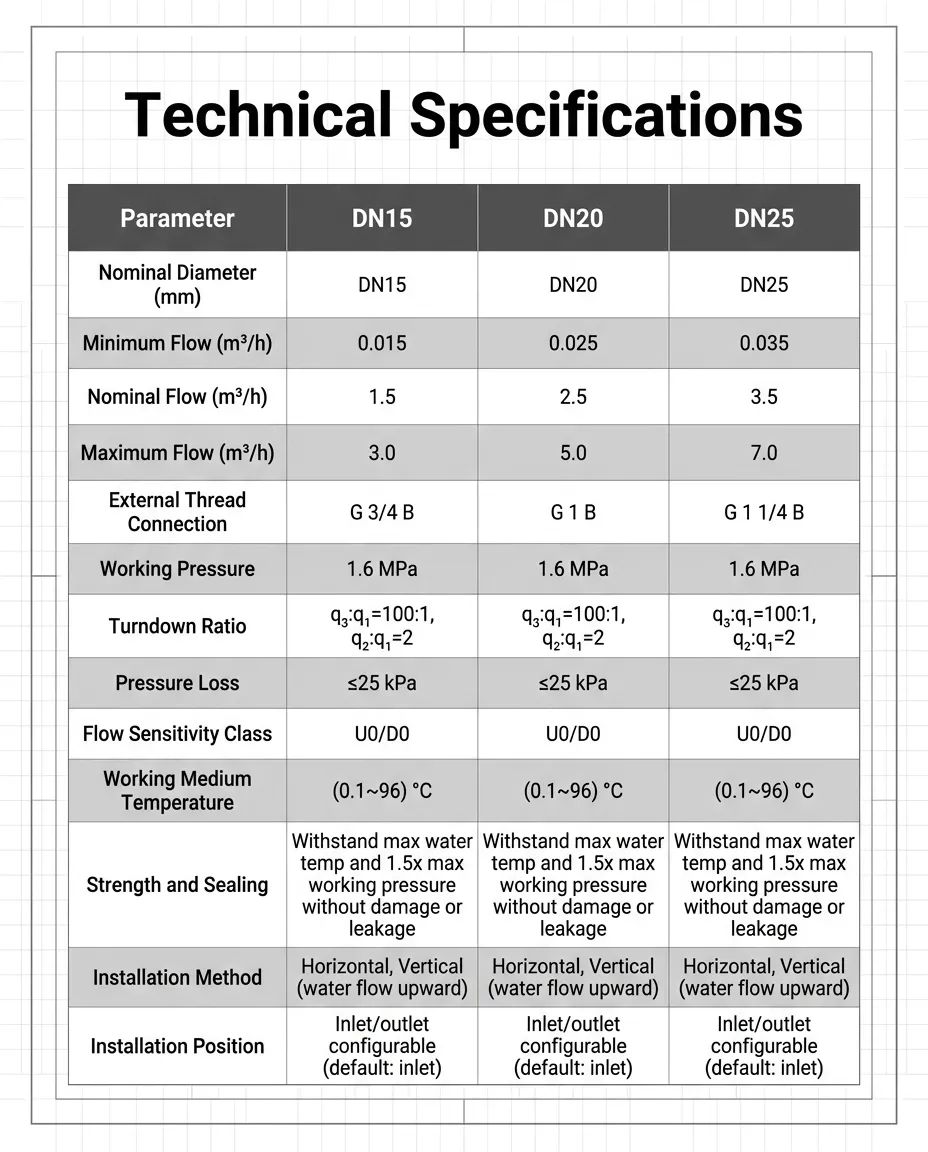

Technical Parameter
|
Performance |
Parameter |
|||
|
Diameter |
Min.Flow |
Nominal Flow |
Max,Flow |
Length |
|
qmin(m³/h) |
qp(m³/h) |
qmax(m³/h) |
mm |
|
|
DN15 |
0.012 |
0.6 |
1.2 |
110 |
|
0.015 |
1.5 |
3 |
||
|
0.03 |
1.5 |
3 |
||
|
DN20 |
0.025 |
2.5 |
5 |
130 |
|
0.05 |
2.5 |
5 |
||
|
DN25 |
0.035 |
3.5 |
7 |
160 |
|
0.07 |
3.5 |
7 |
||
|
DN32 |
0.12 |
6 |
12 |
180 |
|
DN40 |
0.2 |
10 |
20 |
200 |
|
Accuracy |
Class 2 |
|||
|
Connection type |
DN15-DN40 is thread connection |
|||
|
Pressure Loss |
≤0.02MPa |
|||
|
Max. working pressure |
1.6MPa |
|||
|

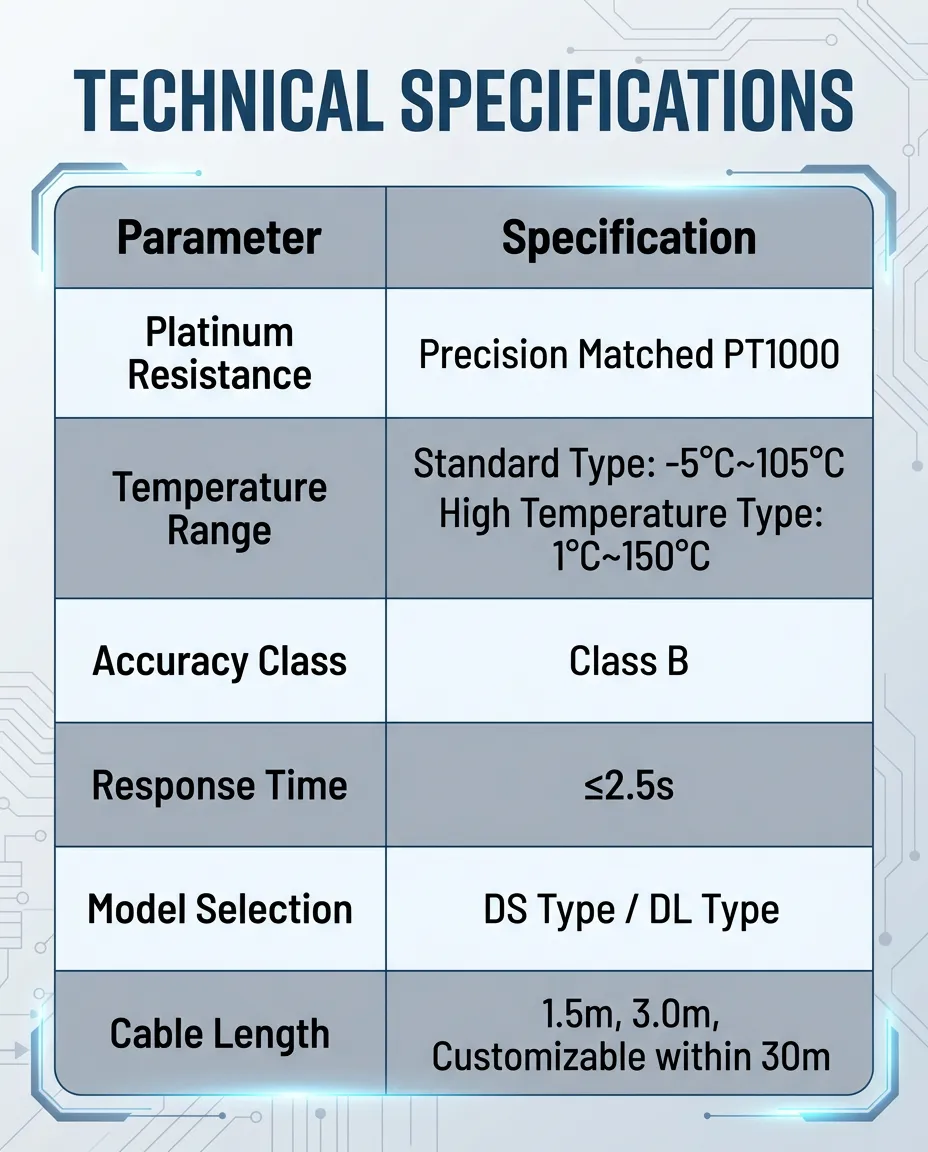

Temperature sensor |
1.5m standard two-wire PT1000 paired temperature |
|||
|
Data Storage |
24 months history data |
|||
|
Transmission |
wMBUS/RS485/Pulse/NB-IOT/LORAWAN/Zigbee |
|||
|
Power |
Built-in Lithium Battery |
|||
|
Protection Class |
IP65/IP67 |
|||
|
Environmental |
Class A |
|||
|
Temperature range |
(4~95)℃ |
|||
|
Temperature difference range |
(2~90)K |
|||
|

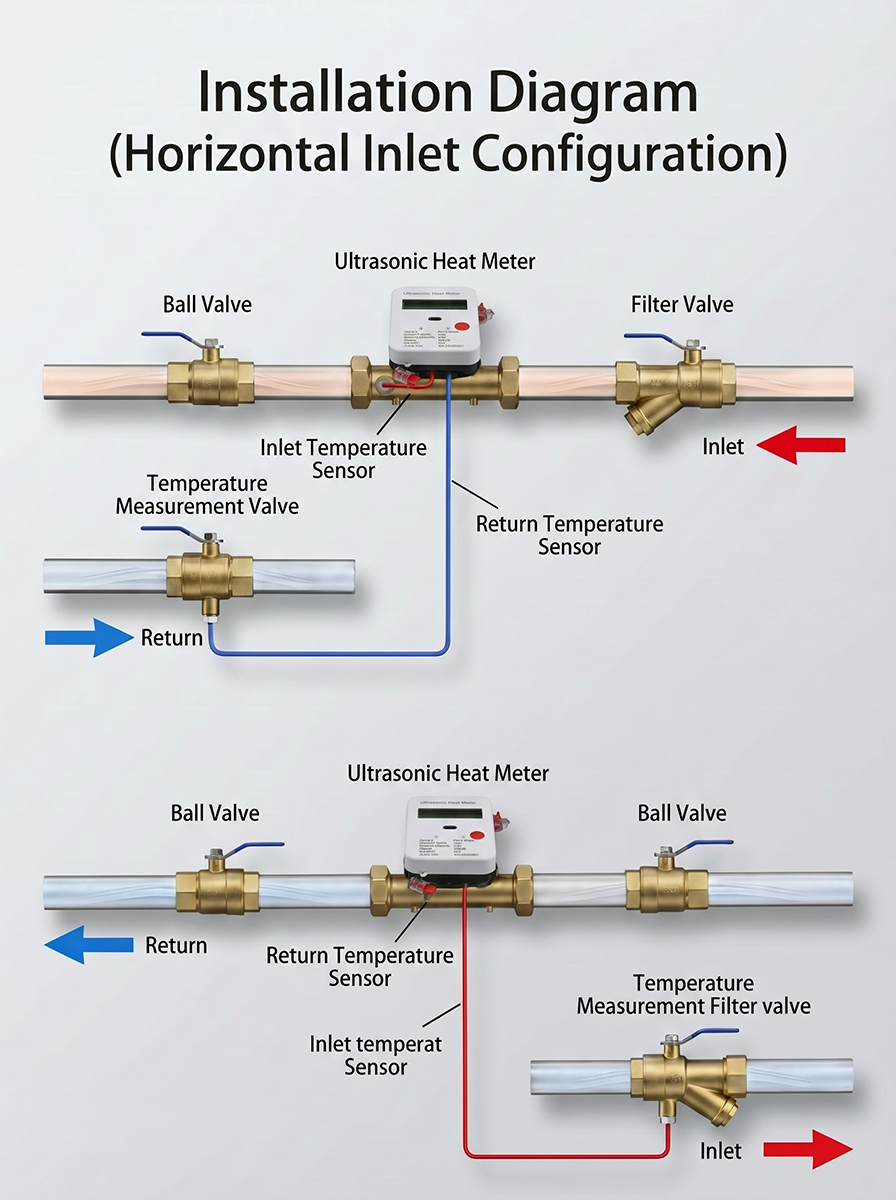

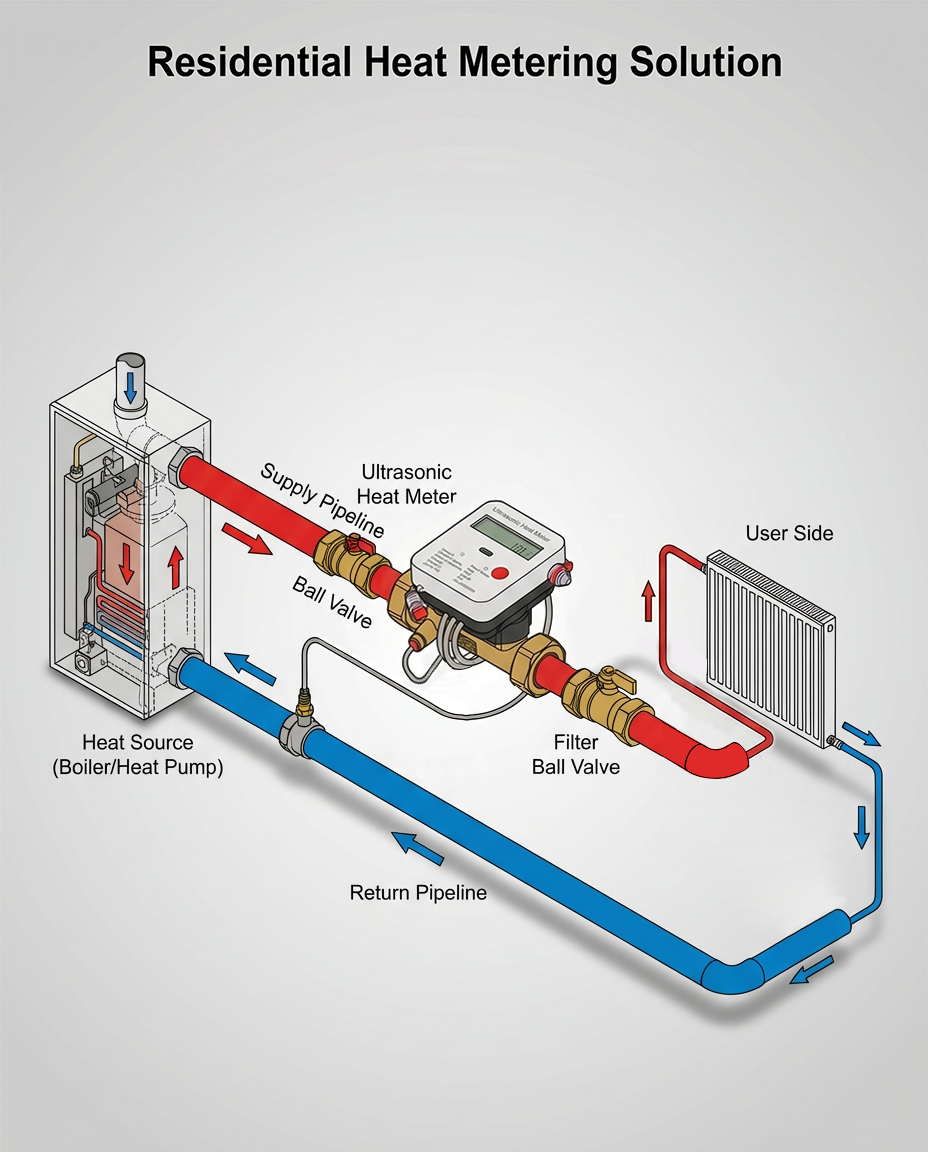

Installation Method |
Water inlet or return (default water inlet) |
|||
|

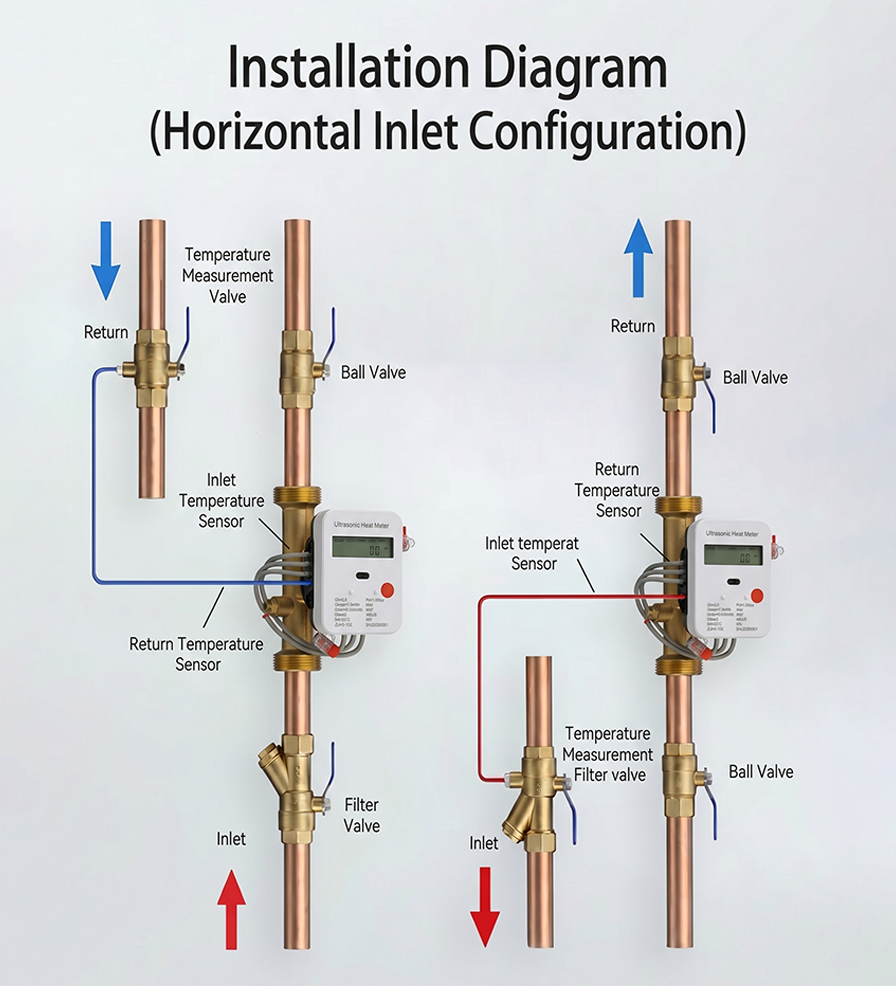

Installation |
Horizontal or Vertical |
|||
|
Battery life |
Life Period ≥ 6 years |
|||
|
Display |
8-bit LCD display |
|||
|
Anti-magnetic interference |
Distribution by a magnetic field with an intensity of less than 100 kA/m,no effective to the metering and remote transmission characteristics of the heat meter |
|||

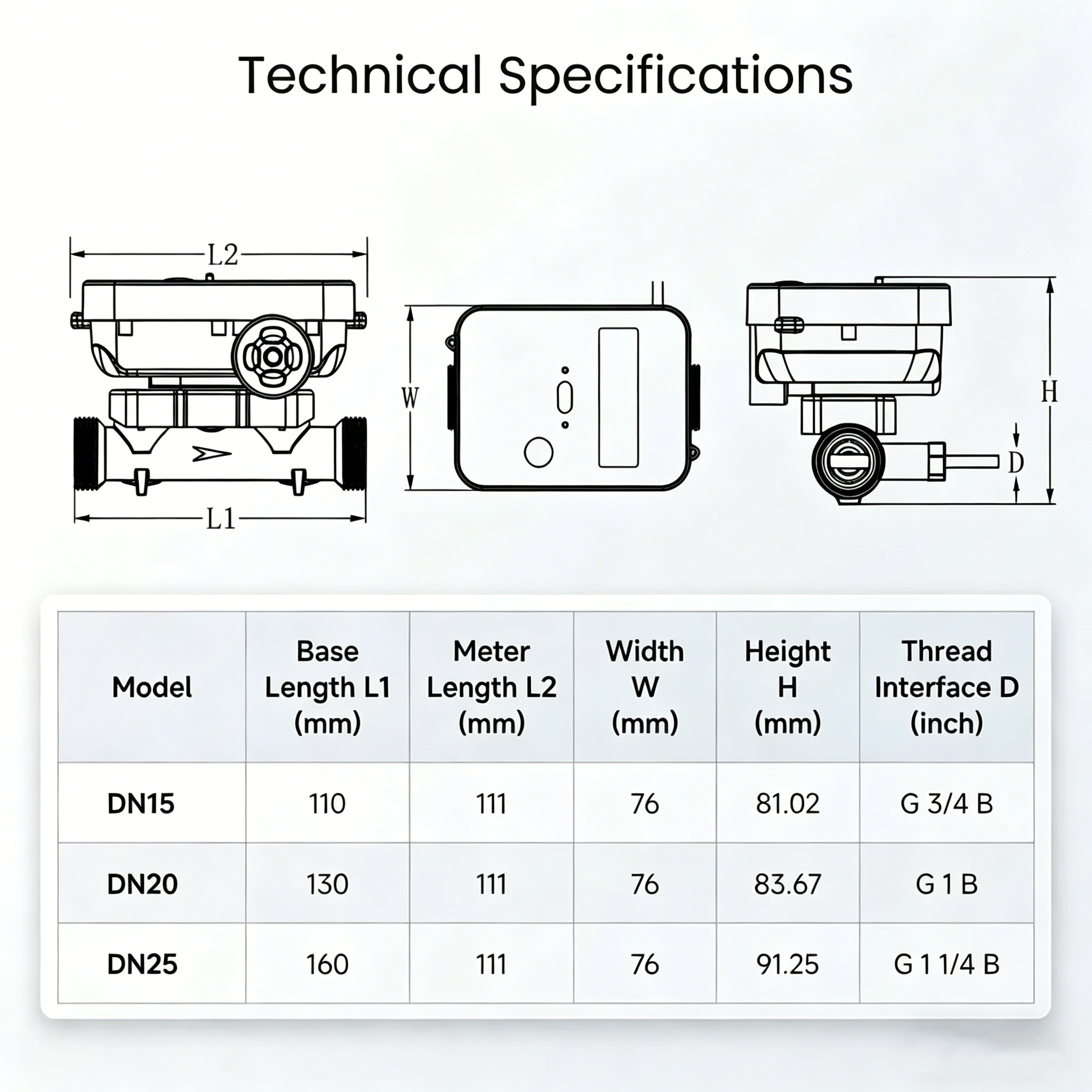

External Dimensions
|
Nominal Diameter |
DN15 |
DN20 |
DN25 |
DN32 |
DN40 |
|
Thread |
G3/4B |
G1B |
G11/4B |
G11/2B |
G2B |
|
L(mm) |
110 |
130 |
160 |
180 |
200 |
|
W(mm) |
76 |
76 |
85 |
85 |
85 |
|
H(mm) |
98.52 |
101.17 |
108.75 |
109 |
113 |
|
Customised threads available |
|||||
