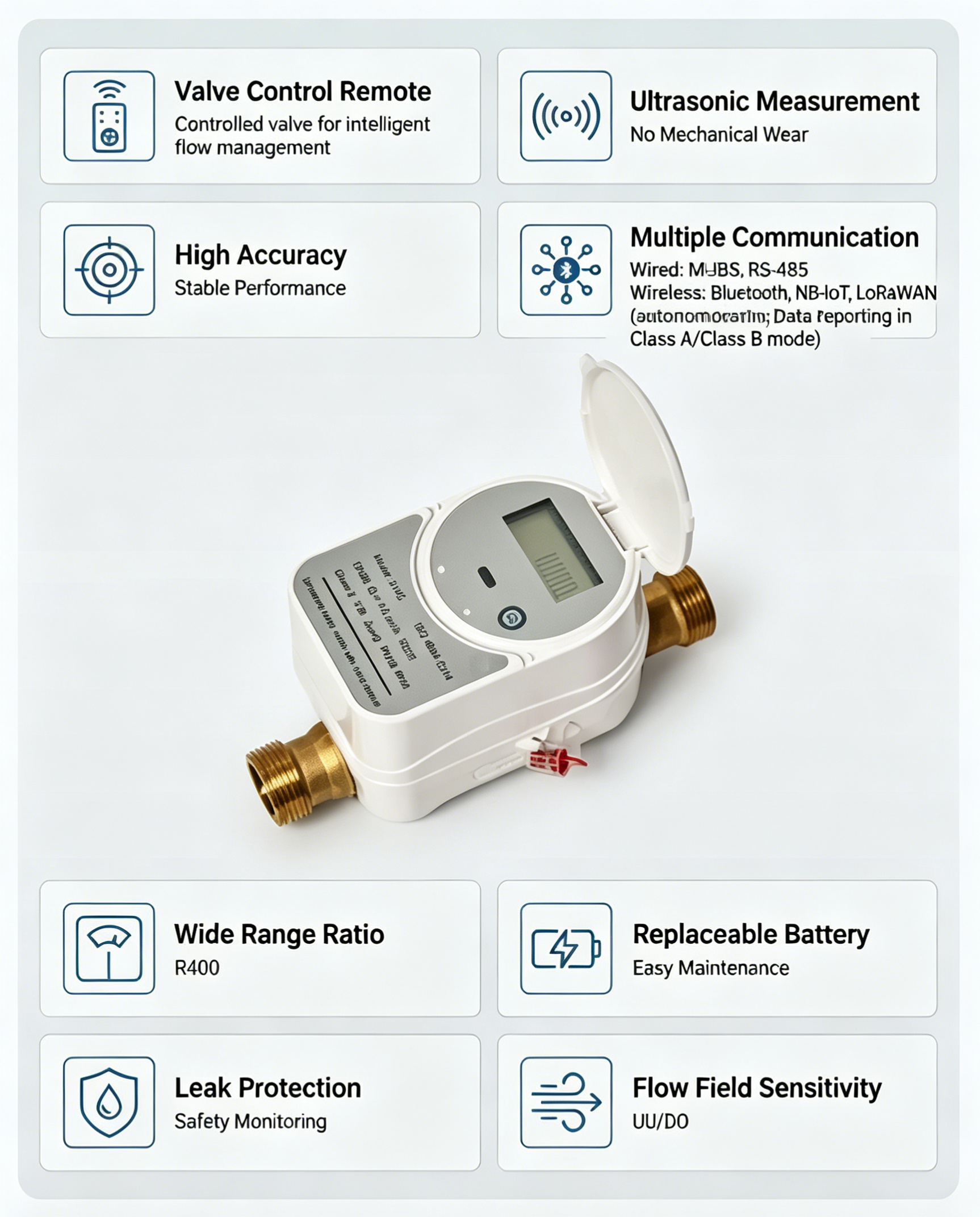

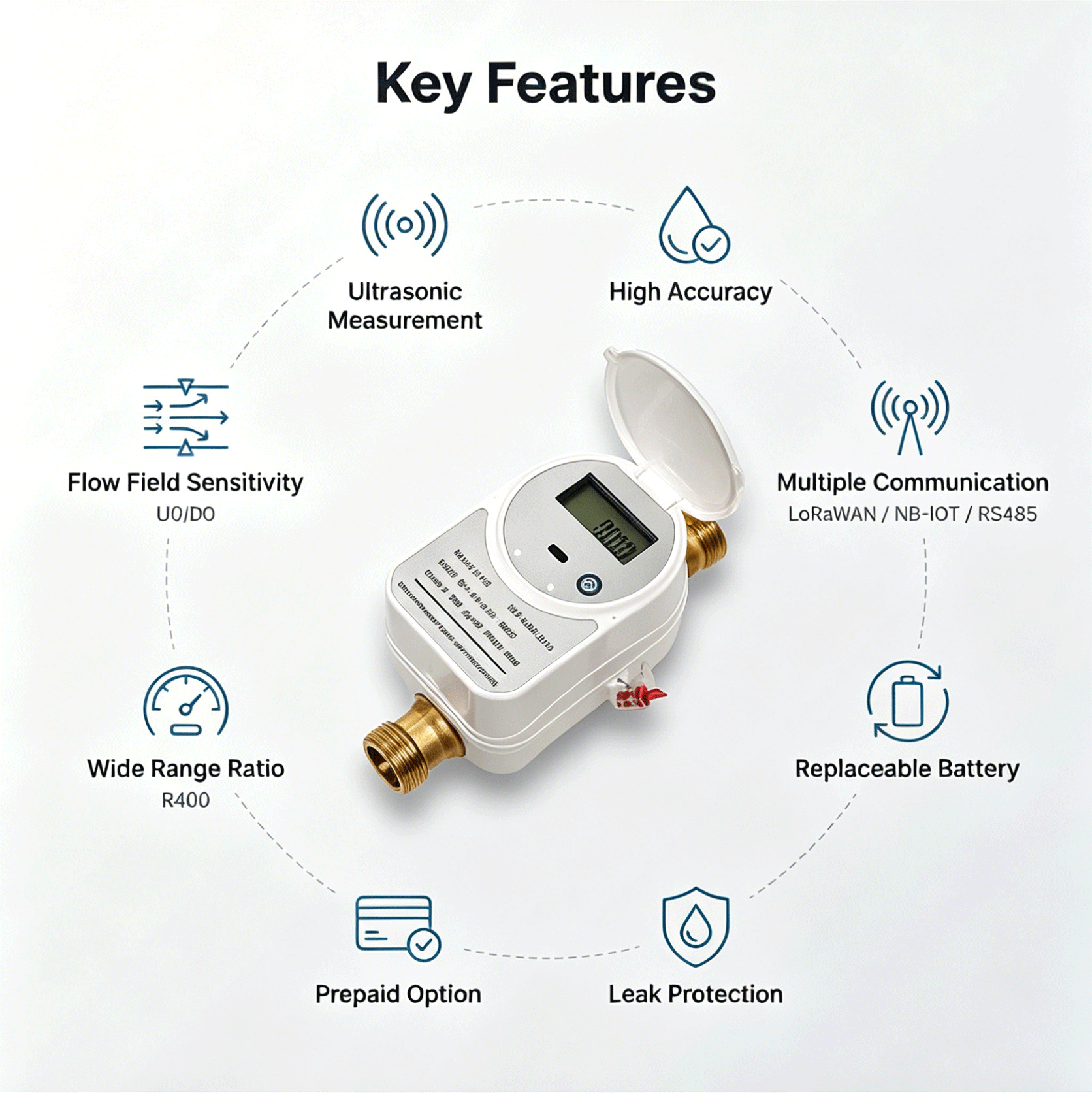

Product Features:
1.Product application in water supply metering especially designed for drinking water

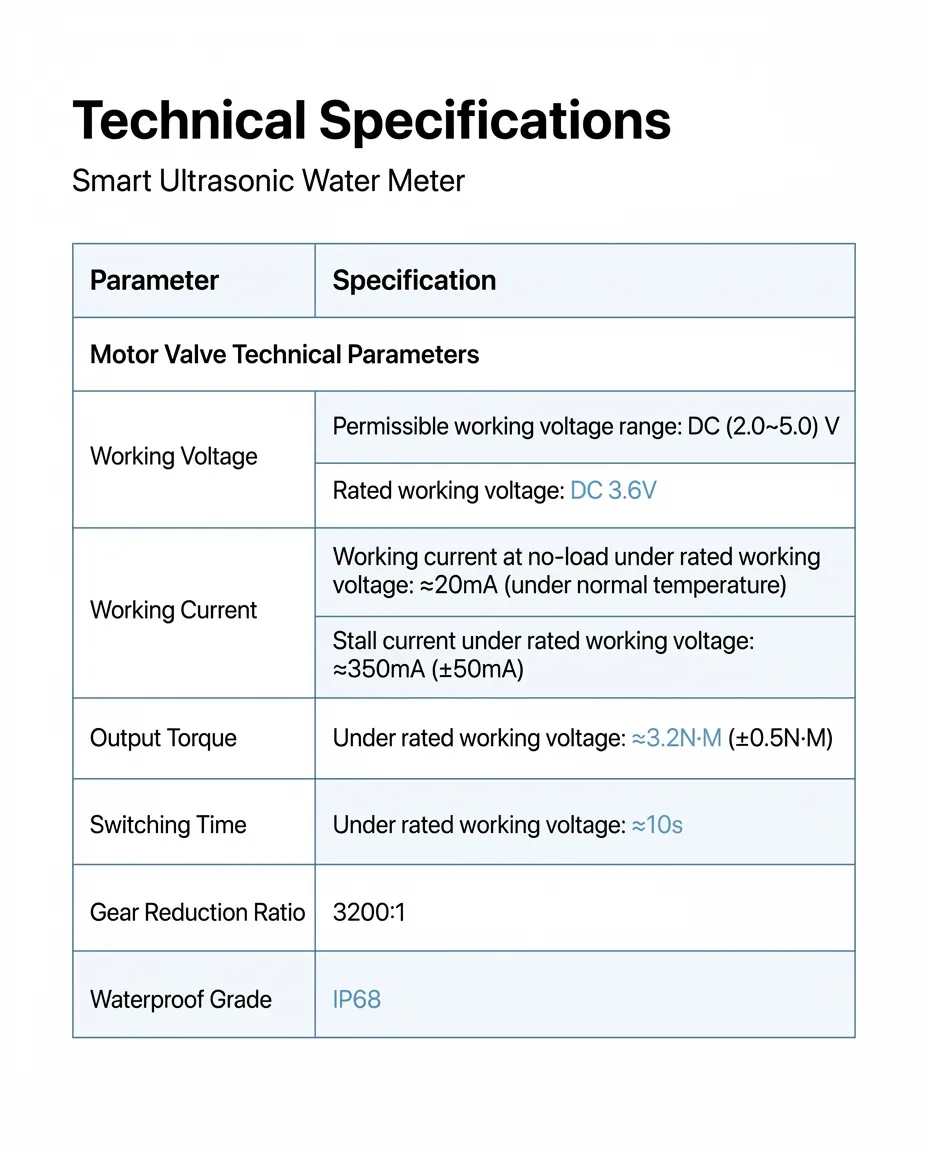

2.Intelligent control,remote vavle control,automatic valve cleaning
3.Pipe material:SS304/L316;copper

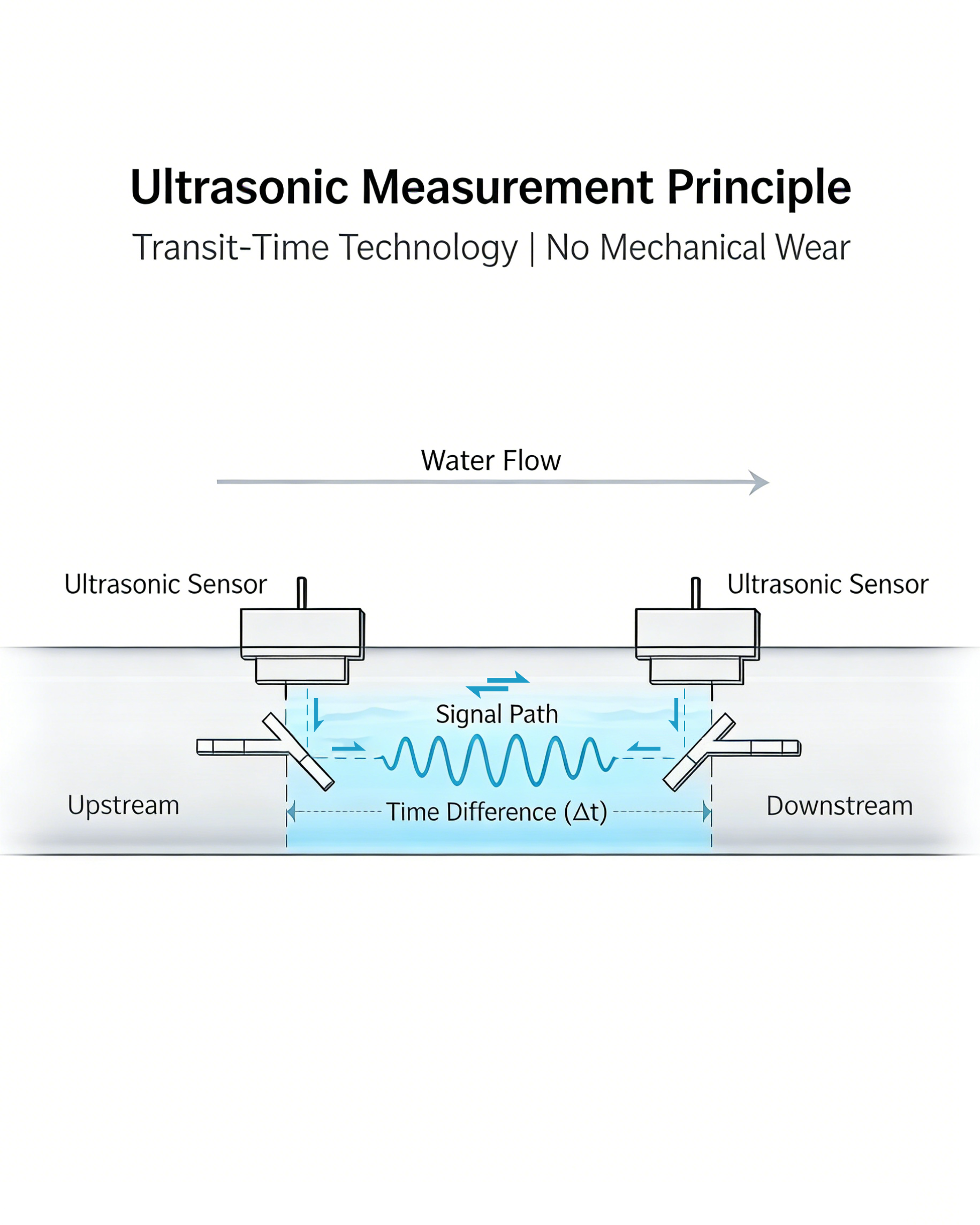

4.Ultrasonic metering, no mechanical wear and tear, with excellent reliability, stability
5.Accuracy level:Class 2
6.Range ratio:R100/R125/R160/R250
7.Temperature grade:T30/T50/70
8.Conform to national standard:GB/T 778;ISO 4064
9.With water drip, burst pipe alarm function
10.Communication interface diversity:MBUS/RS485/Pulse/LoRaWan/NB-loT/Zigbee/4G/wMBUS
11.With pre-payment function(remote pre-payment,T5557 swipe card)
Product Overview：
1.Flexible Battery Life Span
214C has no moving parts, presents as IP68, and its body is fabricated from durable brass material. This robust design makes the 214C maintenance-free and highly precise throughout its flexible 3 or 10 years battery life depends upon customers’ needs.
2.Battery Replaceable
Battery is able to get replaced in case of failure of battery sets. This action can be treated by professional engineers without any injection on electronic parts.
3.Proof of Humidity, Water and UV 214C is specially designed for extreme complex environment which has high humidity, blood or high UV.

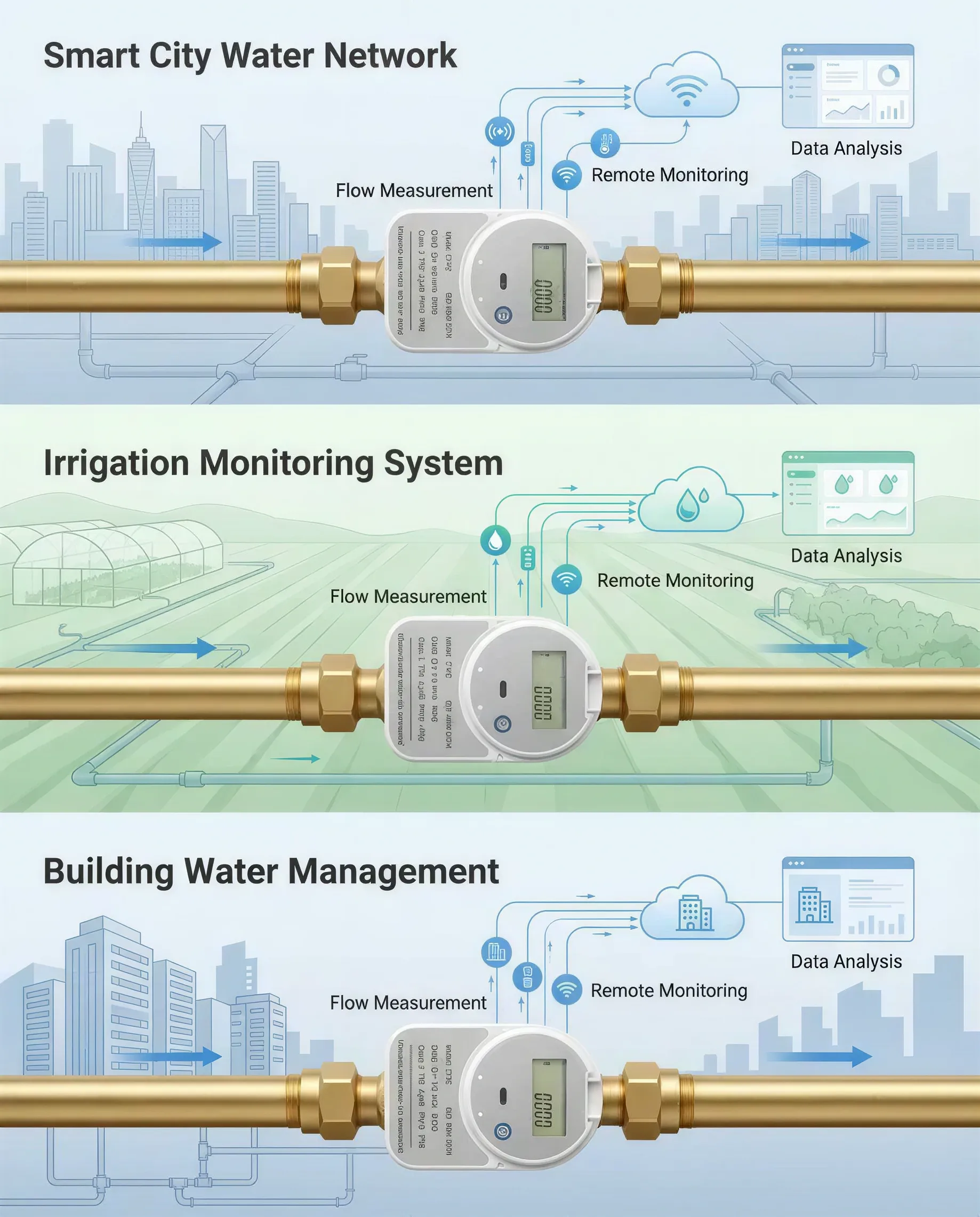

4.IoT Ready
214C supports multiple communication interfaces for both wired and wireless which suitable for any type of installation environment, e.g. MBus, RS485 (Modbus), Pulse, LoRaWAN.
5. Multiple Dynamic Range Options (Q3/Q1)
Application for multiple requirements. From R160 to R250 and R400. Able to count every drop of water.
6.Exceptional Industry Design
Golden ratio of Length-Width-Height, splendid color assortment with Ocean Blue & Night Sky Black. Anti-dirty enclosure ensures long duration of tidy outlook same as original meter.

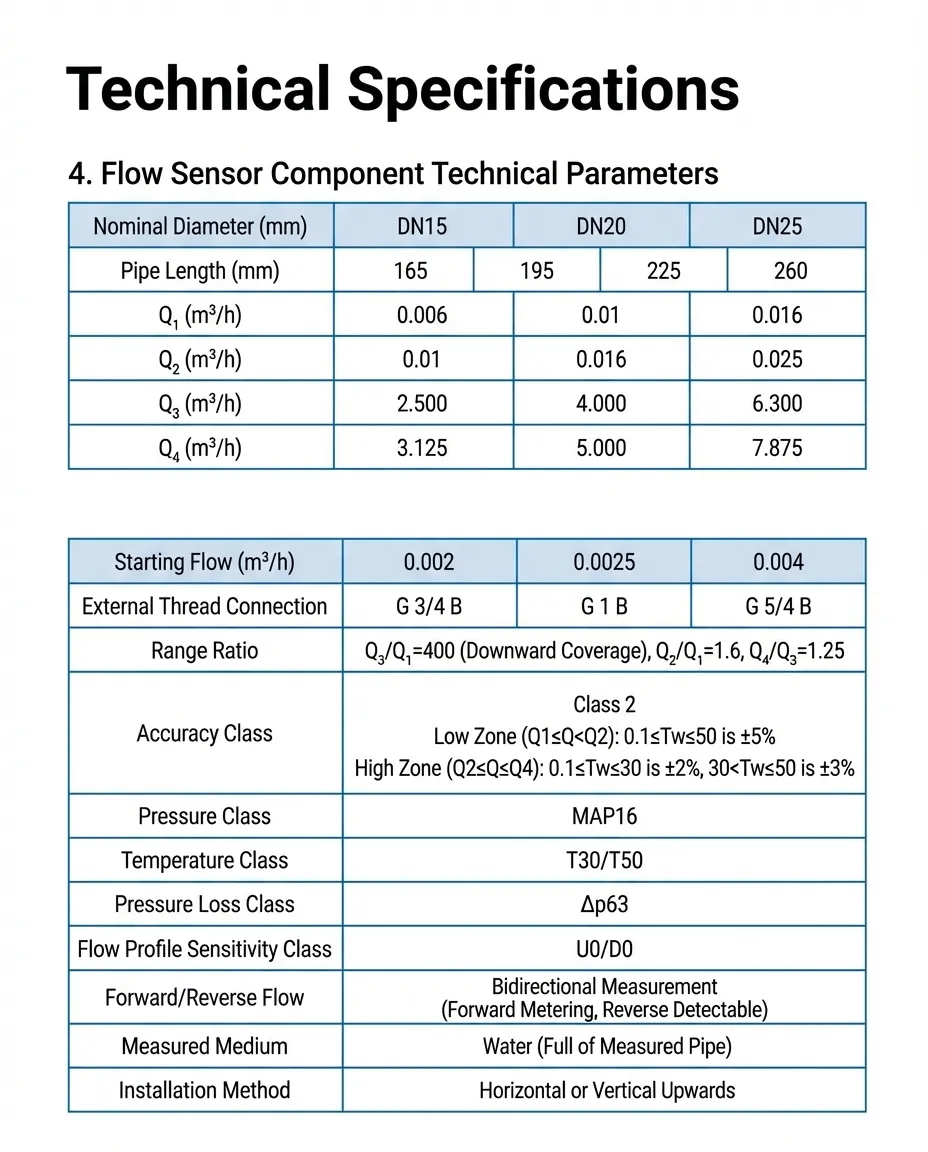

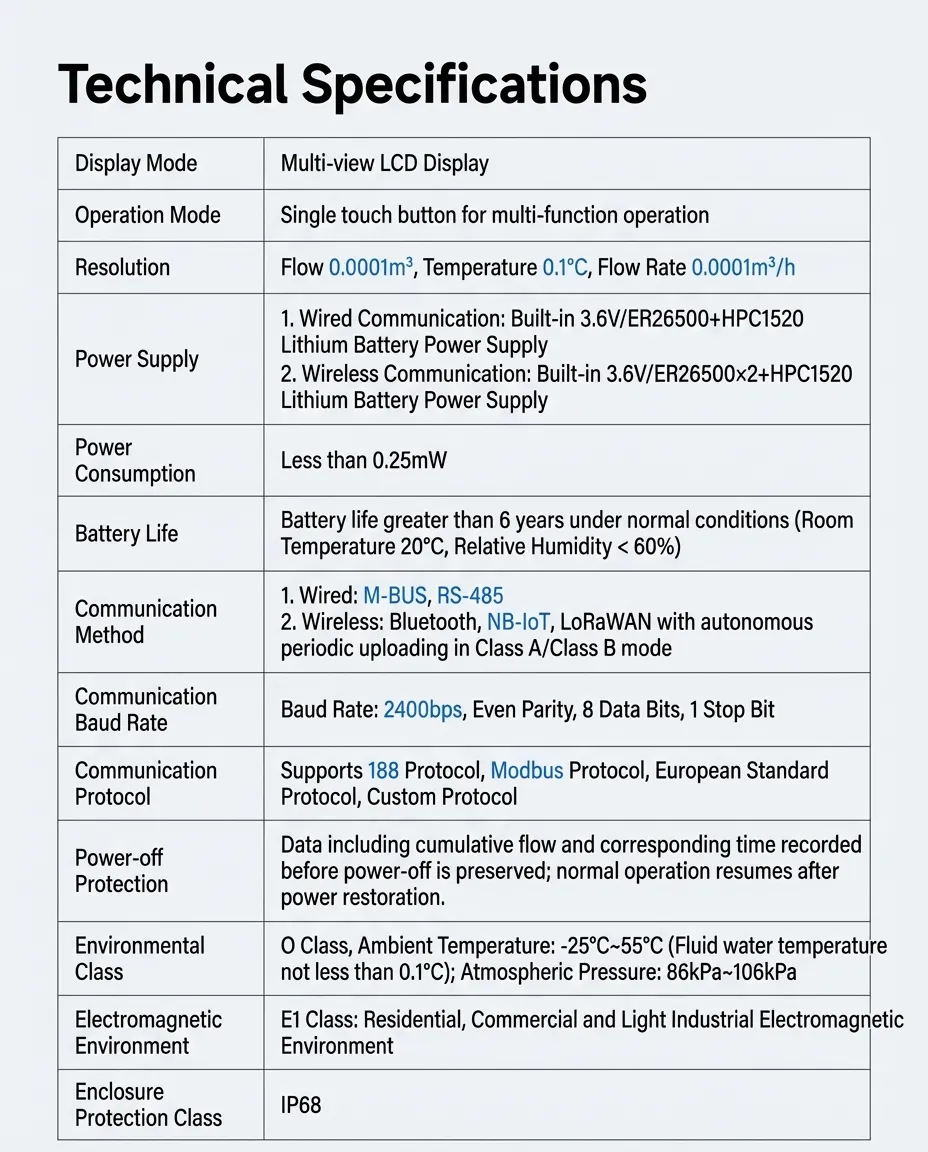

Technical Parameter
|
Performance |
Parameter |
||
|
Diameter |
DN15 |
DN20 |
DN25 |
|
Length(mm) |
165 |
195 |
260 |
|
Q3(m³/h) |
2.5 |
4 |
5 |
|
Start Flow ( L/h ) |
2 |
2 |
3 |
|
Range Ratio |
Q3/Q1=100/125/160/200/250 |
||
|
Accuracy Class |
Class 2 |
||
|
Pressure Stage |
MAP16 |
Pressure Loss |
≤0.063MPa |
|
Temperature |
T30/T50/T70; Default T30 |
||
|
Data Storage |
With daily storage,daily freeze,monthly storage, |
||
|
Transmission |
Optical/M-BUS/RS485/NB-IOT/LORAWAN/4G/Pulse/Zigbee/wMBUS; (Optional) |
||
|
Power |
DC3.6V Lithium Battery |
||
|
Protection Class |
IP68 |
||
|
Environmental |
Temperature:-25°C ~ +55°C |
||
|

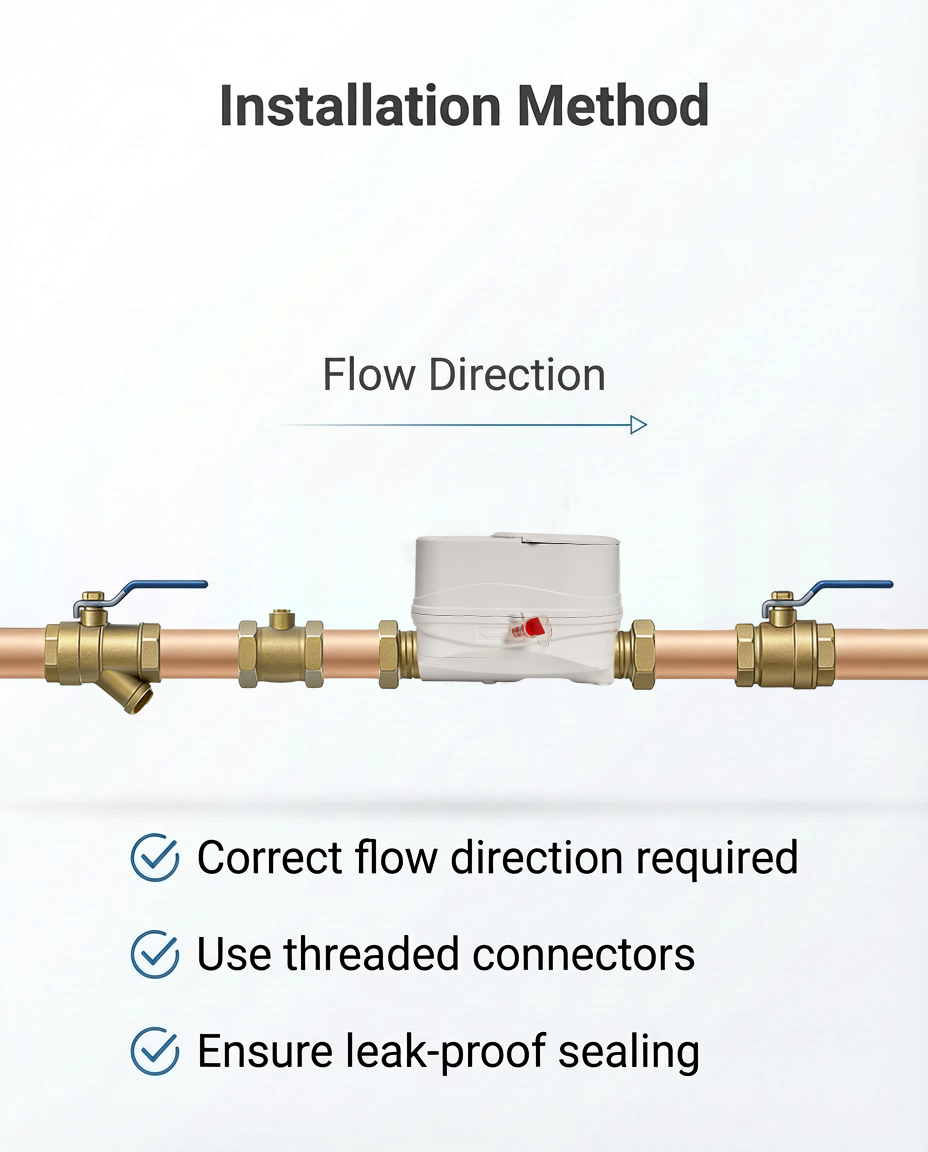

Installation |
Horizontal or Vertical |
||
|
Battery life |
Life Period ≥ 6 years |
||
|
Flow measure |
Reverse flow is measurable |
||
|
Stream Field Sensitivity |
U0D0 |
||

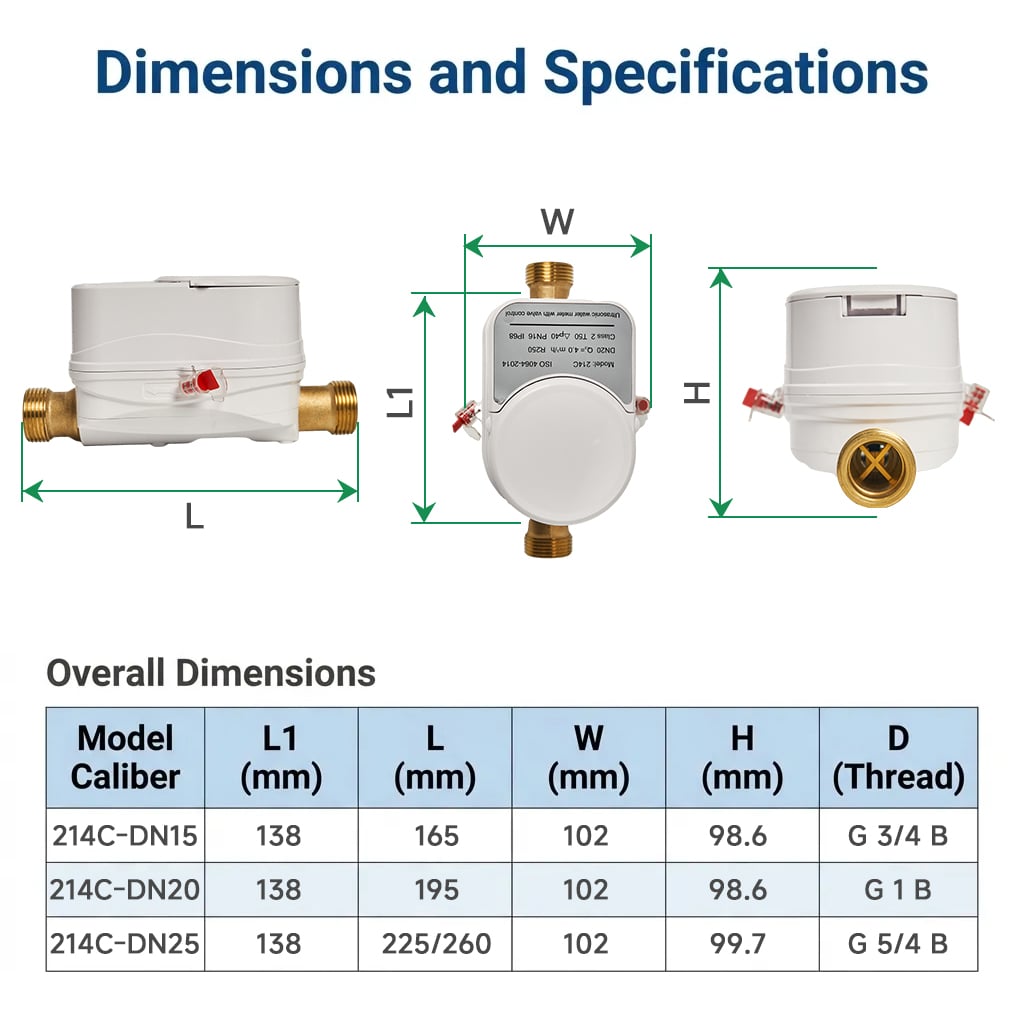

External Dimensions
|
Diameter(mm) |
DN15 |
DN20 |
DN25 |
|
Thread |
G3/4B |
G1B |
G11/4B |
|
L(mm) |
165 |
195 |
260 |
|
H(mm) |
96.5 |
96.5 |
107 |
|
W(mm) |
97 |
97 |
97 |
|
Customised threads available |
|||
