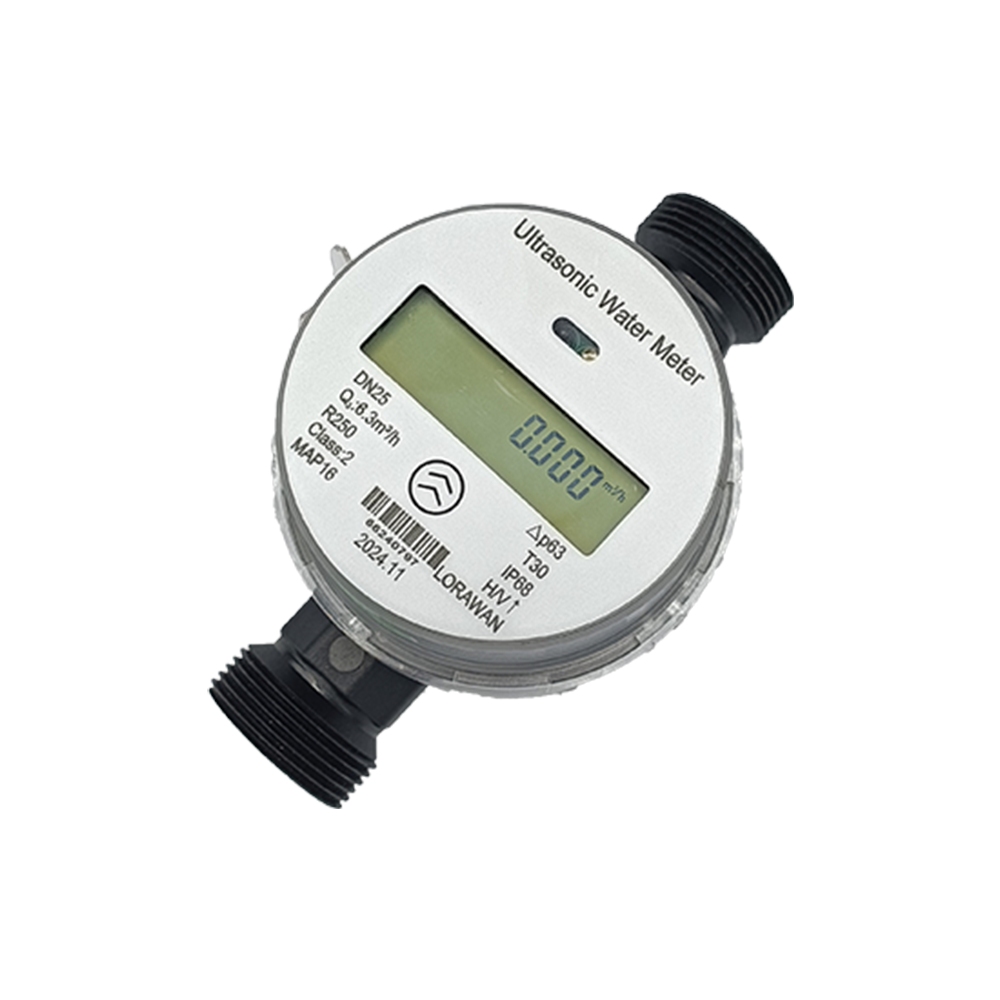

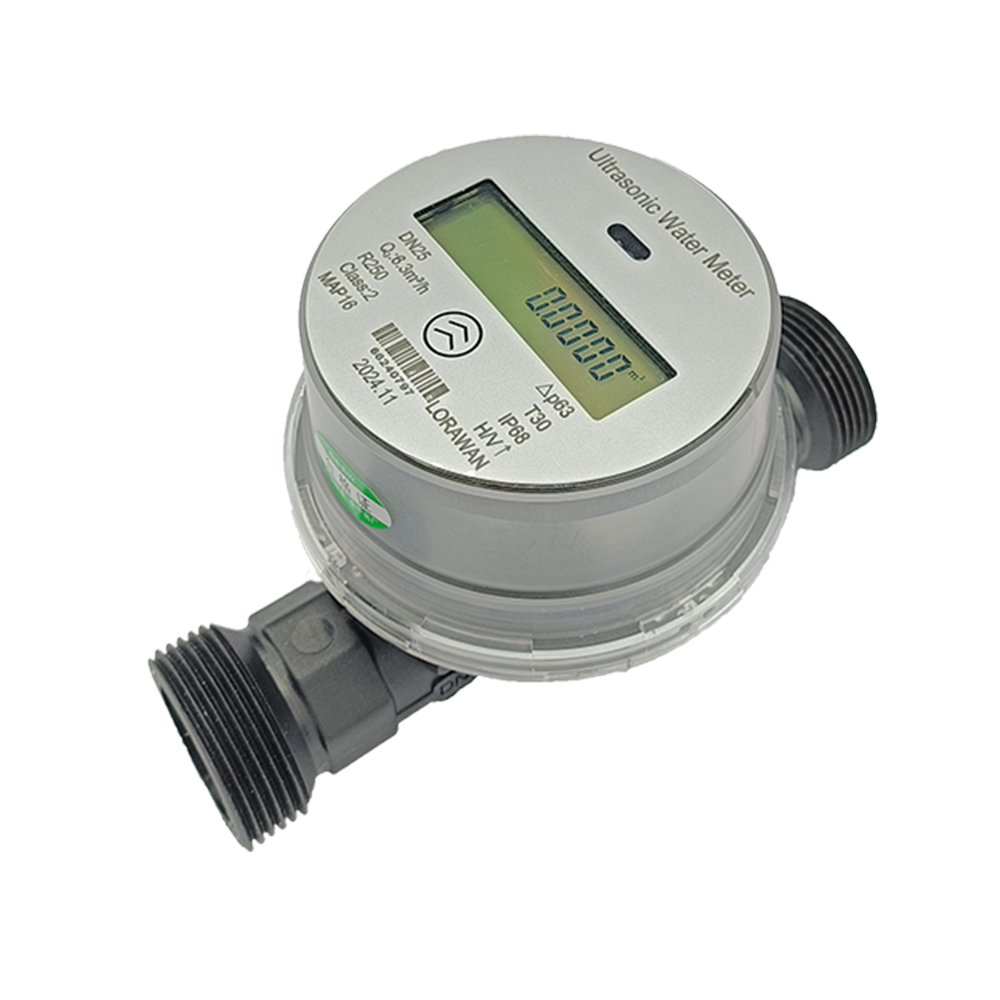

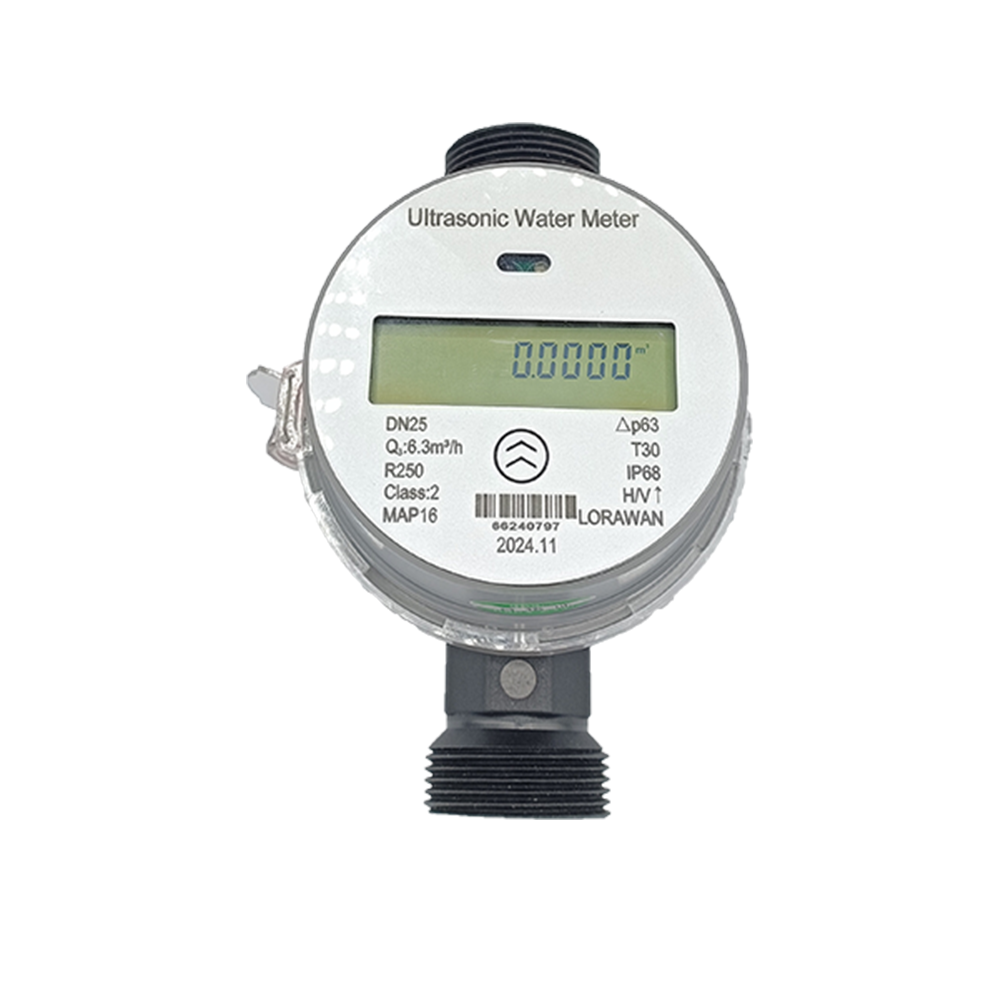

Product Features:
1.Product application for water supply metering
2.Pipe material:PA66
3.Ultrasonic metering, no mechanical wear and tear, with excellent reliability and stability
4.Accuracy level:Class 2
5.Range ratio:R100/R125/R160/R250/R400
6.Temperature grade:T30/T50/70
7.Conform to national standard:GB/T 778;ISO 4064
8.With water drip, burst pipe alarm function
9.Communication interface diversity:
MBUS/RS485/Pulse/LoRaWan/NB-loT/Zigbee/4G/wMBUS
1.Product application for water supply metering
2.Pipe material:PA66
3.Ultrasonic metering, no mechanical wear and tear, with excellent reliability and stability
4.Accuracy level:Class 2
5.Range ratio:R100/R125/R160/R250/R400
6.Temperature grade:T30/T50/70
7.Conform to national standard:GB/T 778;ISO 4064
8.With water drip, burst pipe alarm function
9.Communication interface diversity:
MBUS/RS485/Pulse/LoRaWan/NB-loT/Zigbee/4G/wMBUS
Technical Parameter
|
Performance |
Parameter |
||
|
Diameter |
DN15 |
DN20 |
DN25 |
|
Length (mm) |
110 |
130 |
160 |
|
Q3(m³/h) |
2.5 |
4 |
6.3 |
|
Start Flow ( L/h ) |
2 |
2 |
3 |
|
Range Ratio |
Q3/Q1=100/125/160/200/250/400 |
||
|
Accuracy Class |
Class 2 |
||
|
Pressure Stage |
MAP16 |
Pressure loss rating |
≤0.063MPa |
|
Temperature |
T30/T50/T70; Default T30 |
||
|
Data Storage |
With daily storage,daily freeze,monthly storage, monthly freeze,annual storage |
||
|
Transmission |
Optical/M-BUS/RS485/NB-IOT/LORAWAN/4G/Pulse/Zigbee/wMBUS; (configured on demand) |
||
|
Power |
DC3.6V Lithium Battery |
||
|
Protection Class |
IP68 |
||
|
Environmental |
Temperature:-25°C ~ +55°C |
||
|
Installation |
Horizontal or Vertical |
||
|
Battery life |
Life Period ≥ 6 years |
||
|
Flow measure |
Reverse flow is measurable |
||
|
Stream Field Sensitivity |
U0D0 |
||
External Dimensions
|
Nominal Diameter |
DN15 |
DN20 |
DN25 |
|
Thread |
G3/4B |
G1B |
G11/4B |
|
L(mm) |
110 |
130 |
160 |
|
H(mm) |
101.5 |
101.5 |
101.5 |
|
W(mm) |
91.6 |
95.7 |
102.3 |
|
Customised threads available |
|||
1.Does your company have valid business license (the company name, address, products/business scope complied with actual or not)?
Yes, all the details are actual situation.
2.Is the annual review done by local authority?
Yes, we have passed annual review.
3. What are your main products?
Our main products are the water meter , heat meter and valve.
4. Is it confirmed that your company is a real manufacture, foreign trader or combined?
Yes, we are a combined operation company, both processing manufacturing and trading.
5.Has your company obtained the valid certificate for their quality management system, such as ISO9001, qc08000 and etc?
We obtained ISO9001..
6.Do you support the third party inspection?
Of course.
7. Will you timely inform me the production situation of my order and send me some production pictures?
Of course, we will.
